Wide Bandwidth Photodiode Amplifier

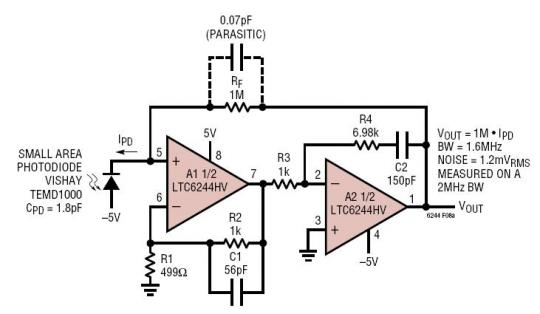

Wide bandwidth performance from a small photodiode requires minimizing the total input capacitance. In this circuit the amplifier's differential input capacitance is bootstrapped by the feedback with R1 and R2. Choosing the amplifier input that is at the corner of the package for the dual LTC6244 also minimizes pin-to-pin capacitance. Taking a gain of three inside the feedback loop also increases the circuits gain bandwidth product.
