Ground Referred Precision Current Sources

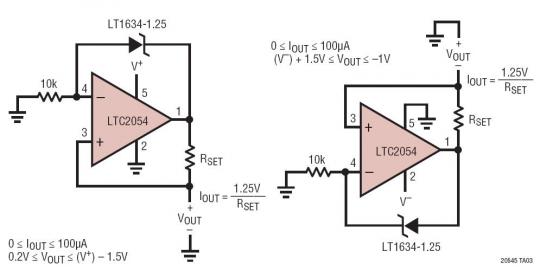

The zero drift LTC2054 instrumentation amplifier can be used in conjunction with one of Linear Technology's precision, low temperature drift shunt voltage references (in this example the LT1634) to create a precision, ground referred current source.
