Full-Bridge Amplification Using Autozero Amplifiers to Reduce Input Referred Noise

2011年06月10日17:05:11 本网站 我要评论(2)字号:T | T | T
关键字:
Full-Bridge Amplification Using Autozero Amplifiers to Reduce Input Referred Noise

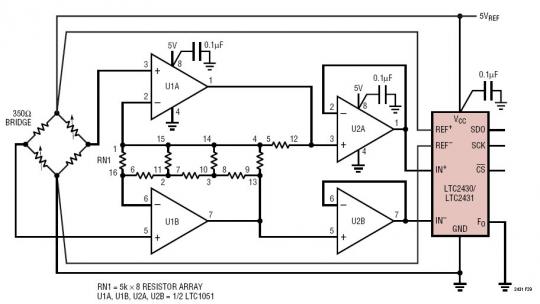

This circuit shows an example of a simple amplification scheme. This example produces a differential output with a common mode voltage of 2.5V, as determined by the bridge. The use of a true three amplifier instrumentation amplifier is not necessary, as the LTC2430/LTC2431 have common mode rejection far beyond that of most amplifiers. The LTC1051 is a dual autozero amplifier that can be used to produce a gain of 10 before its input referred noise dominates the LTC2430/LTC2431 noise. This example shows a gain of 34, that is determined by a feedback network built using a resistor array containing eight individual resistors. The resistors are organized to optimize temperature tracking in the presence of thermal gradients. The second LTC1051 buffers the low noise input stage from the transient load steps produced during conversion.
